Servo current consumption test

The test was made the following way:
The servo is fixed to the edge of the table. As a load a 1 liter bottle of water is hanged on the 0.95cm long arm (0.95kgcm). The current is measured on a 0.1ohm shunt. (100mV = 1A) The servo is moved with a signal generator. The supply voltage is 5V. As the potentiometer is rotated, the servo moves between the two end positions. At every measurement once forward and back. The two positions are approximately -45deg to +45deg.

Turnigy TGY S306G	- 0.07s/60deg - 2.4kgcm - 21g - top ball bearing - metal gear - digital
Unloaded current No load, no motion: 22mA

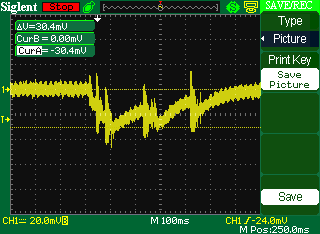

Unloaded motion No load, the arm moves between endpositions: 304mA peak
Static load The load is hanging on the arm, no motion: 330mA

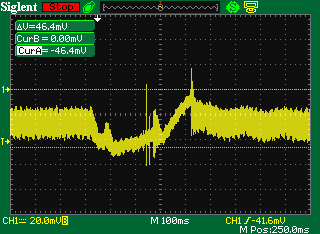

Loaded motion The load is hanging on the arm, moving between the endpositions: 464mA peak
Blocked The arm is blocked: 1000mA
